Super Jobber 500
Specifications
| Capacity | Super Jobber 500 | Unit | |||
| Swing Over Bed | 500 | mm | |||
| Distance Between Centers | 425 | mm | |||
| Maximum Turning Dia |
425/(550) | mm | |||
| Between Centre Turning Dia | 260 | mm | |||
| Maximum Turning Length1,3 | 400(500)* | mm | |||
| Control System | Fanuc 0I-Mate-TD/ Siemens 828D Basic T | ||||
| Spindle | |||||
| Spindle Nose | A2-6 | ||||
| Bore Through Spindle | 63 | mm | |||
| Front Bearing Bore | 100 | mm | |||
| Maximum Bar Capacity | 42* | mm | |||
| Maximum Spindle speed | 3500 | mm | |||
|
Fanuc - 7.5 Siemeens - 8.4 - 10.8 |
kw | |||
| Spindle Motor Power (Continuous Rating) | Fanuc - 7.5 / Siemens - 7 | kw | |||
| Full Power Range |
Fanuc 1166 - 2625/Siemeens 875 - 2660 |
rpm | |||
| Standard Chuck Size | 200 | mm | |||
| Axes | |||||
| Type of Guideways | Hardened & Ground Box type Guideways | ||||

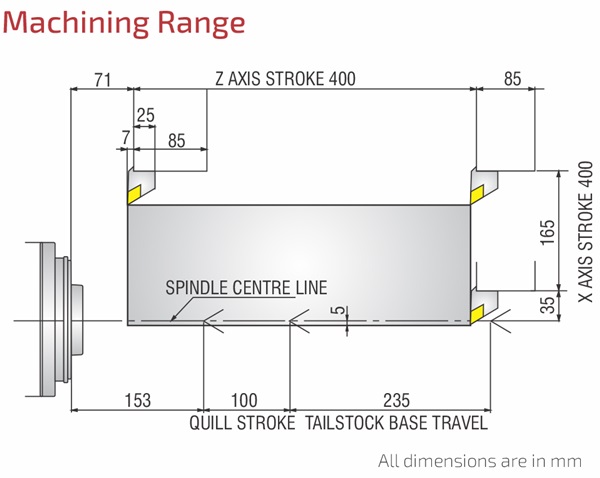

| X-Axis Stroke | 165 | mm | |||
| Z-Axis Stroke | 400(500) | mm | |||
| X & Z Axes Rapid Rate | 20 | m/min. | |||
| Tooling | |||||
| Number of Tools Maximum | 8 | ||||
| Boring Bar Dia Maximum | 40 | mm | |||
| OD Turning Tool Size | 25x25 | mm | |||
| Tailstock | |||||
| Tailstock Base Travel | 235(410) | mm | |||
| Tailstock Quill Travel | 100 | mm | |||
| Tailstock Quill Dia | 80 | mm | |||
| Quill Taper | MT-4 | ||||
| Hydraulic System | |||||
| Hydraulic Pump Capacity | 14 | lpm | |||
| Hydraulic Power Pack tank Capacity | 45 | litre | |||
| System Pressure | 30 | kg/cm2 | |||
| Coolant Tank Capacity | 110 | litre | |||

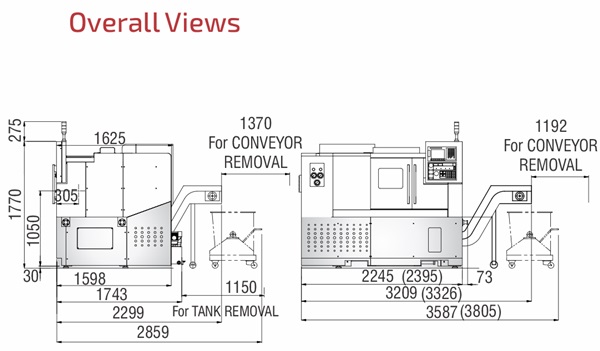

| Overall Machine Dimensins | |||||
| (L x W xH) | 2250 x 1750 x 1770 | mm | |||
| Overall Weigt | |||||
| (Without Packing) | 3750 | kg | |||
